Multi Crop Thresher with Gear Box NCK-01 HMS

Multi Crop Thresher with Gear Box NCK-01 HMS

Multi Crop Thresher with Gear Box: Professional Power Transmission

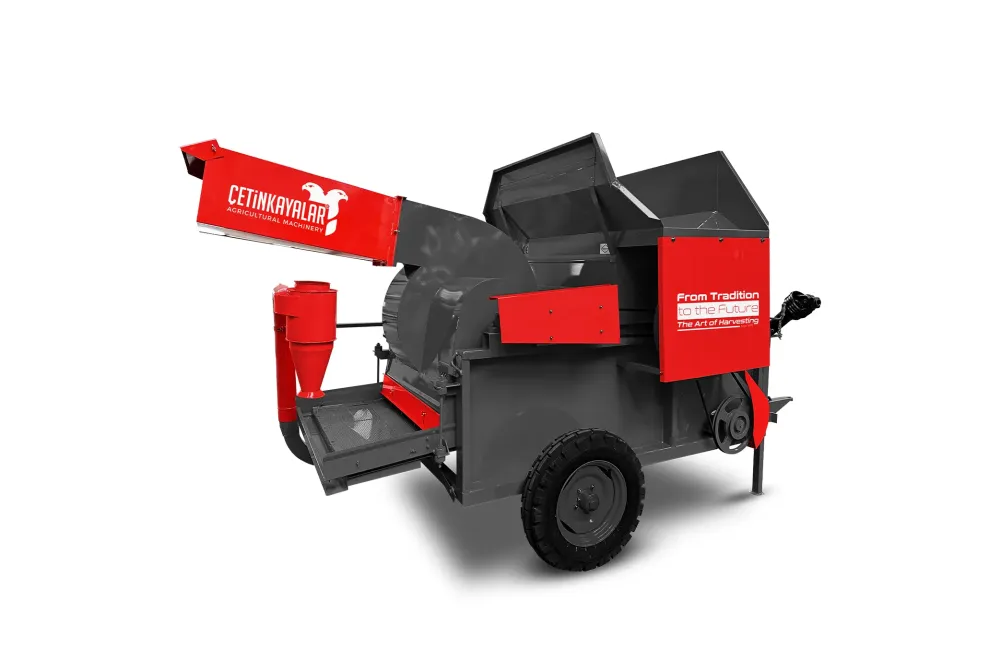

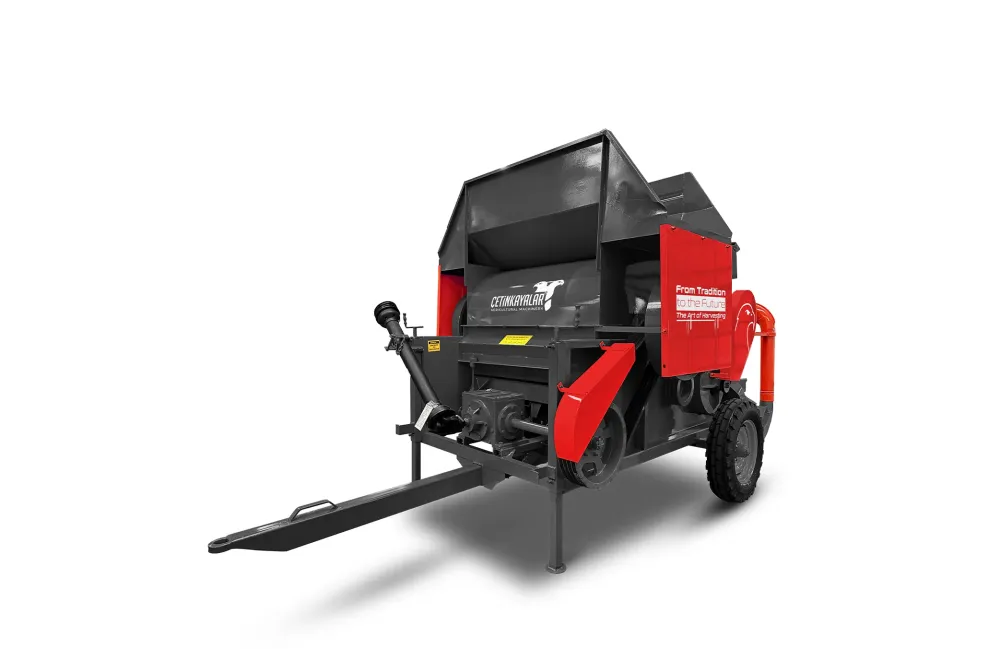

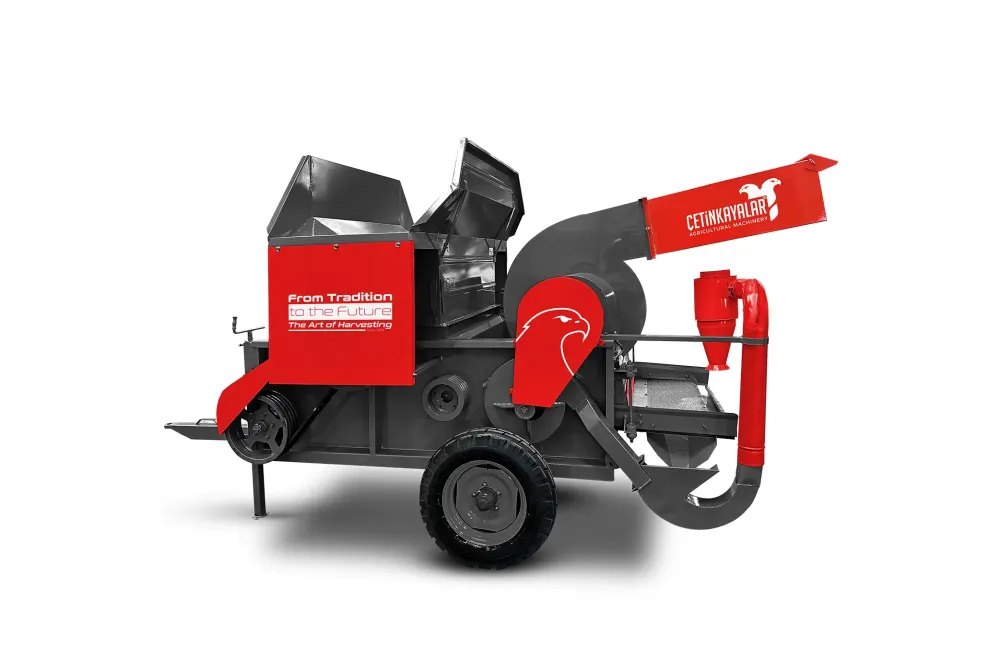

The NCK-01 HMS, an engineering marvel by Cetinkayalar Agriculture, introduces the era of "Gearbox Power" in harvesting technology. Unlike standard threshers, this model transmits power from the tractor's PTO to the drum via a specialized Gear Box system, minimizing power loss and maximizing torque.

Why Choose a Thresher with a Gear Box?

The NCK-01 HMS goes beyond belt-pulley systems by managing power through gears. The biggest advantage of the gearbox system is that it absorbs fluctuations in tractor RPM, ensuring the drum always spins at a stable speed. This results in:

1. Reduced Tractor Strain: Fuel consumption decreases as power is transmitted directly and continuously.

2. Vibration-Free Operation: With a reinforced body weighing 1500 kg and perfect gearbox balance, the machine operates smoothly without vibration.

Combined Pneumatic System and Versatility

This machine is equipped with a Combined Pneumatic (Air) Bagging System. The harvested crop is loaded directly into bags or trailers via a powerful airflow.

It harvests not only wheat, barley, and oats but also legumes such as Chickpeas, Lentils, Beans, Broad Beans, and Cumin with a simple sieve and pulley change. Thanks to the gearbox structure, the drum speed is precisely regulated, ensuring no grain breakage during pulse harvesting.

Technical Superiority and Massive Capacity

Its extended chassis length of 4750 mm ensures superior stability in the field. With a harvesting capacity of 2200 kg/hr, the NCK-01 HMS processes even the toughest stalks with its 44 specially hardened drum fingers.

Technical Specifications

• Transmission: Gear Box System

• Total Length: 4750 mm (Extended chassis for stability)

• Weight: 1500 Kg (Heavy-duty body)

• Required Tractor Power: 20 hp - 100 hp

• Bagging System: Pneumatic (Air)

The NCK-01 HMS Multi Crop Thresher with Gear Box is the choice of professional farmers who refuse to leave their harvest to chance and demand technology and power in their fields.

Please contact us for more information.

❓ FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the difference between the Gear Box thresher and standard shaft models?

In the Gear Box model, power is transmitted through a gear unit. This prevents power loss, ensures a more stable drum speed, and eliminates issues like belt slippage or breakage. It is a more durable and professional solution.

2. Which crops can I harvest with the NCK-01 HMS?

Besides cereals like wheat, barley, oats, and rye, you can safely harvest legumes such as chickpeas, lentils, beans, and cumin by changing the sieves. The gearbox structure helps prevent grain breakage in delicate crops.

3. Does this machine strain my tractor?

No, on the contrary, the gearbox system balances the torque, protecting your tractor. It operates with high efficiency at just 540 PTO rpm with any tractor between 20 HP and 100 HP.
